Product Summary

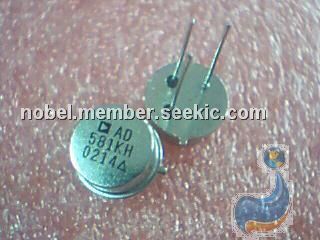

The AD581KH is a three-terminal, temperature compensated, monolithic bandgap voltage reference which provides a precise 10.00 volt output from an unregulated input level from 12 to 30 volts. The AD581KH is recommended for use as a reference for 8-, 10- or 12-bit D/A converters which require an external precision reference. The device is also ideal for all types of A/D converters up to 14-bit accuracy, either successive approximation or integrating designs, and in general can offer better performance than that provided by standard self-contained references.
Parametrics
Absolute maximum ratings: (1)Input Voltage: 40 V; (2)Power Dissipation @ +25℃: 600 mW; (3)Operating Junction Temperature Range: –55℃ to +150℃; (4)Lead Temperature (Soldering 10 sec): +300℃; (5)Thermal Resistance, Junction-to-Ambient: 150℃/W.
Features
Features: (1)Laser Trimmed to High Accuracy: 10.000 Volts ±5mV (L and U); (2)Trimmed Temperature Coefficient: 5 ppm/℃ max, 0℃ to +70℃ (L); 10 ppm/℃ max, –55℃ to +125℃ (U); (3)Excellent Long-Term Stability: 25 ppm/1000hrs (Noncumulative); (4)Negative 10 Volt Reference Capability; (5)Low Quiescent Current: 1.0 mA max; (6)10 mA Current Output Capability; (7)3-Terminal TO-5 Package; (8)MIL-STD-883 Compliant Versions Available.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AD581KH |
IC VREF SERIES PREC 10V TO-5-3 |
Data Sheet |
|
|
||||||||||||||||||
