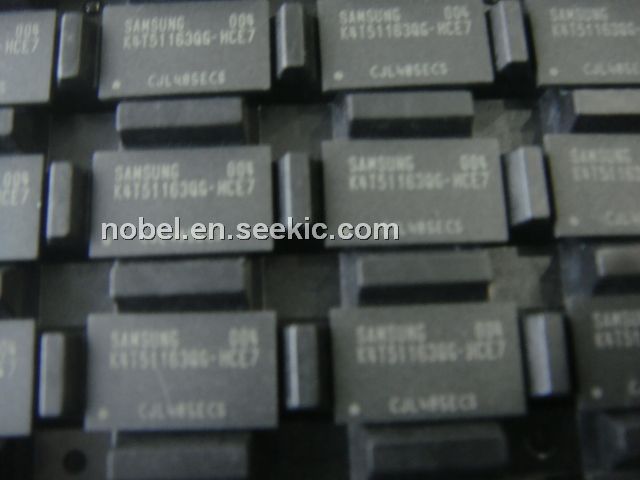

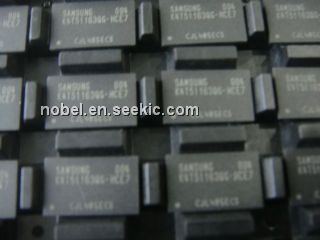

K4T51163QG-HCE7

512Mb G-die DDR2 SDRAM, BGA, 1.8V ± 0.1V, 200 MHz

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.29~4.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	4.00 / Piece
11 ~ 100 :	1.83 / Piece
101 ~ 500 :	1.29 / Piece

PartNumber:: K4T51163QG-HCE7

Brand:: Samsung semiconductor - SAMSUNG | Pack: BGA | D/C: 10+

Availability:: Supply Ability: 1000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Datasheet:: K4T51163QG-HCE7 Datasheet download

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Lucas's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-06

From Other Seller

Part Number:K4T51163QG-HCE7
US $1.29 - 4.00
Quantity:

piece

Product Summary

The K4T51163QG-HCE7 512Mb DDR2 SDRAM is organized as a 32Mbit x 4 I/Os x4banks or 16Mbit x 8 I/Os x 4banks or 8Mbit x 16 I/Os x 4 banks device. This K4T51163QG-HCE7 achieves high speed doubledata-rate transfer rates of up to 800Mb/sec/pin (DDR2-800) for general applications. The K4T51163QG-HCE7 is designed to comply with the following key DDR2 SDRAM features such as posted CAS with additive latency, write latency = read latency -1, Off-Chip Driver(OCD) impedance adjustment and On Die Termination.

Parametrics

K4T51163QG-HCE7 absolute maximum ratings: (1)VDD, Voltage on VDD pin relative to VSS: - 1.0 V ~ 2.3 V ; (2)VDDQ, Voltage on VDDQ pin relative to VSS: - 0.5 V ~ 2.3 V ; (3)VDDL, Voltage on VDDL pin relative to VSS: - 0.5 V ~ 2.3 V ; (4)VIN, VOUT Voltage on any pin relative to VSS: - 0.5 V ~ 2.3 V ; (5)TSTG, Storage Temperature: -55 to +100℃.

Features

K4T51163QG-HCE7 features: (1)JEDEC standard 1.8V±0.1V Power Supply; (2)VDDQ = 1.8V±0.1V; (3)200 MHz fCK for 400Mb/sec/pin, 267MHz fCK for 533Mb/sec/pin, 333MHz fCK for 667Mb/sec/pin, 400MHz fCK for 800Mb/sec/pin; (4)4 Banks; (5)Posted CAS; (6)Programmable CAS Latency: 3, 4, 5, 6; (7)Programmable Additive Latency: 0, 1 , 2 , 3, 4 , 5; (8)Write Latency(WL) = Read Latency(RL) -1; (9)Burst Length: 4 , 8(Interleave/nibble sequential); (10)Programmable Sequential / Interleave Burst Mode; (11)Bi-directional Differential Data-Strobe (Single-ended datastrobe is an optional feature); (12)Off-Chip Driver(OCD) Impedance Adjustment; (13)On Die Termination; (14)Special Function Support: PASR(Partial Array Self Refresh); 50ohm ODT; High Temperature Self-Refresh rate enable; (15)Average Refresh Period 7.8us at lower than TCASE 85℃, 3.9us at 85℃ < TCASE ≤ 95 ℃; (16)All of products are Lead-free, Halogen-free, and RoHS compliant.
