Product Summary
The PM39LV512-70VCE is a 512 Kbit 3.0 Volt-only Flash Memory. The device is designed to use a single low voltage, range from 2.7 Volt to 3.6 Volt, power supply to perform read, erase and program operations. The 12.0 Volt VPP power supply for program and erase operations are not required. The device can be programmed in standard EPROM programmers as well. The memory array of PM39LV512-70VCE is divided into uniform 4 Kbyte sectors for data or code storage.
Parametrics
PM39LV512-70VCE absolute maximum ratings: (1)Temperature Under Bias: -65℃ to +125℃; (2)Storage Temperature: -65℃ to +125℃; (3)Surface Mount Lead Soldering Temperature: Standard Package: 240℃ 3 Seconds; Lead-free Package 260℃ 3 Seconds; (4)Input Voltage with Respect to Ground on All Pins except A9 pin: -0.5 V to VCC + 0.5 V; (5)Input Voltage with Respect to Ground on A9 pin: -0.5 V to +13.0 V; (6)All Output Voltage with Respect to Ground: -0.5 V to VCC + 0.5 V; (7)VCC: -0.5 V to +6.0 V.
Features
PM39LV512-70VCE features: (1)Single Power Supply Operation: Low voltage range: 2.7 V - 3.6 V; (2)Memory Organization: 64K x 8 (512 Kbit); (3)High Performance Read: 55/70 ns access time; (4)Cost Effective Sector/Block Architecture: Uniform 4 Kbyte sectors; (5)Data# Polling and Toggle Bit Features; (6)Hardware Data Protection; (7)Automatic Erase and Byte Program: Build-in automatic program verification; Typical 16 μs/byte programming time; Typical 55 ms sector/block/chip erase time; (8)Low Power Consumption: Typical 4 mA active read current; Typical 8 mA program/erase current; Typical 0.1 μA CMOS standby current; (9)High Product Endurance: Guarantee 100,000 program/erase cycles per single sector (preliminary); Minimum 20 years data retention; (10)Industrial Standard Pin-out and Packaging: 32-pin (8 mm x 14 mm) VSOP; 32-pin PLCC; Optional lead-free (Pb-free) package.

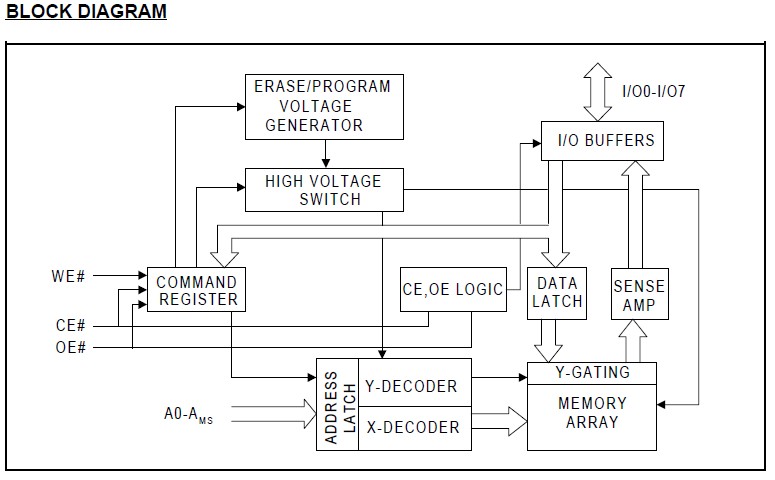

Diagrams
