Product Summary

The AT90CAN128-16AU is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the AT90CAN128-16AU achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed. The AVR core combines a rich instruction set with 32 general purpose working registers.

Parametrics

AT90CAN128-16AU absolute maximum ratings:(1)Industrial Operating Temperature: -40℃ to +85℃;(2)Storage Temperature: -65℃ to +150℃;(3)Voltage on any Pin except RESET with respect to Ground: -0.5V to VCC+0.5V;(4)Voltage on RESET with respect to Ground: -0.5V to +13.0V;(5)Voltage on VCC with respect to Ground: -0.5V to 6.0V;(6)DC Current per I/O Pin: 40.0 mA;(7)DC Current VCC and GND Pins: 200.0 mA.

Features

AT90CAN128-16AU features:(1)High-performance, Low-power AVR 8-bit Microcontroller;(2)133 Powerful Instructions- Most Single Clock Cycle Execution;(3)Fully Static Operation;(4)Up to 16 MIPS Throughput at 16 MHz;(5)Programming Lock for Software Security;(6)4K Bytes EEPROM (Endurance: 100,000 Write/Erase Cycles);(7)15 Full Message Objects with Separate Identifier Tags and Masks;(8)1M bits/s Maximum Transfer Rate at 8 MHz;(9)Programmable Watchdog Timer with On-chip Oscillator;(10)5 Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down & Standby.etc.

Diagrams

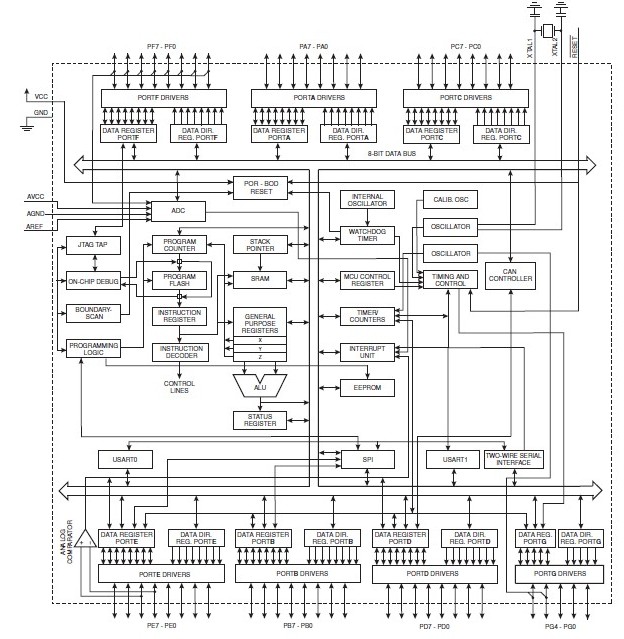

AT90CAN128-16AU block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AT90CAN128-16AU
AT90CAN128-16AU

Atmel

8-bit Microcontrollers (MCU) 128kB Flash 4kB EEPROM 53 I/O Pins

Data Sheet

0-1: $6.65
1-10: $5.54
10-25: $4.17
25-100: $3.77
AT90CAN128-16AUR
AT90CAN128-16AUR

Atmel

8-bit Microcontrollers (MCU) AVRC11 128K Flash Green

Data Sheet

0-821: $3.84
821-1000: $3.78
