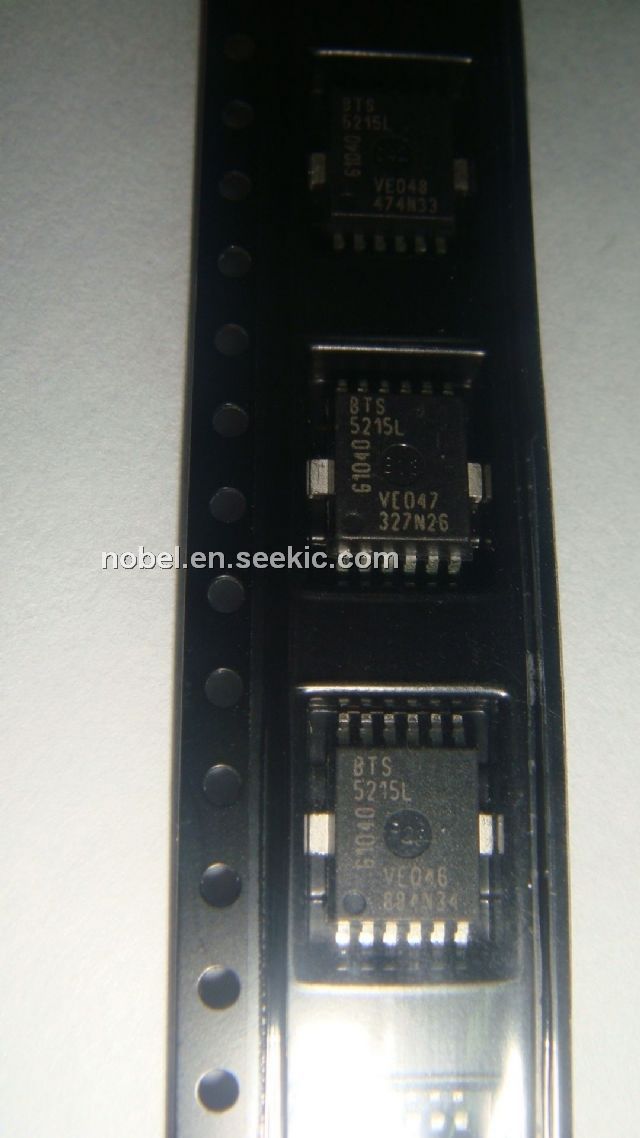

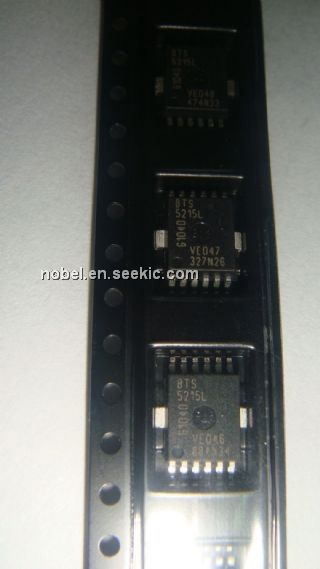

BTS5215L

high-side, power switch, SOP, 43 V, CMOS compatible input, Very low standby current

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.13~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	3.00 / Piece
11 ~ 100 :	1.50 / Piece
101 ~ 500 :	1.13 / Piece

PartNumber:: BTS5215L

Brand:: Infineon Technologies AG - Infineon | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 1000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Datasheet:: BTS5215L Datasheet download

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Lucas's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-05

From Other Seller

Part Number:BTS5215L
US $1.13 - 3.00
Quantity:

piece

Product Summary

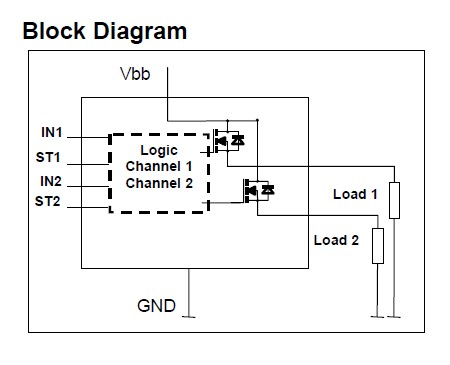

The BTS5215L is a smart high-side power switch with two channels: 2 x 90m and Status Feedback. Infineon Technologies AG. N channel vertical power MOSFET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, is monolithically integrated in Smart SIPMOS technology. The BTS5215L provides embedded protective functions.

Parametrics

BTS5215L absolute maximum ratings: (1)Supply voltage (overvoltage protection see page 6) Vbb: 43 V; (2)Supply voltage for full short circuit protection Tj,start =-40 to +150℃ Vbb: 36 V; (3)Load current (Short-circuit current, see page 6) IL: self-limited A; (4)Operating temperature range Tj: -40 to +150℃; (5)Storage temperature range Tstg: -55 to +150℃; (6)Current through input pin (DC) IIN: ±0.3 mA; (7)Pulsed current through input pin5) IINp: ±5.0 mA; (8)Current through status pin (DC) IST: ±5.0 mA.

Features

BTS5215L features: (1)Very low standby current; (2)CMOS compatible input; (3)Improved electromagnetic compatibility (EMC); (4)Fast demagnetization of inductive loads; (5)Stable behaviour at undervoltage; (6)Wide operating voltage range; (7)Logic ground independent from load ground.
