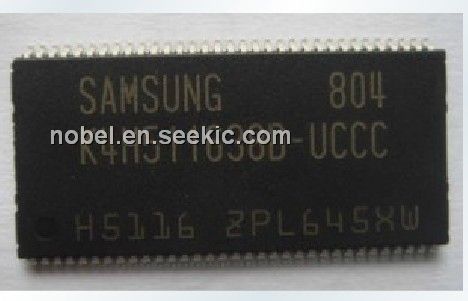

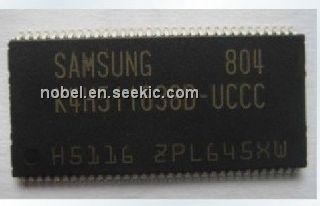

K4H511638D-UCCC

536,870,912 bits, synchronous DRAM, TSOP66, -0.5 ~ 3.6 V, 50 mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.45~3.54 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	3.54 / Piece
11 ~ 100 :	2.14 / Piece
101 ~ 500 :	1.45 / Piece

PartNumber:: K4H511638D-UCCC

Brand:: Samsung semiconductor - SAMSUNG | Pack: TSOP | D/C: 11+

Availability:: Supply Ability: 1000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Datasheet:: K4H511638D-UCCC Datasheet download

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Lucas's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-05

From Other Seller

Part Number:K4H511638D-UCCC
US $1.45 - 3.54
Quantity:

piece

Product Summary

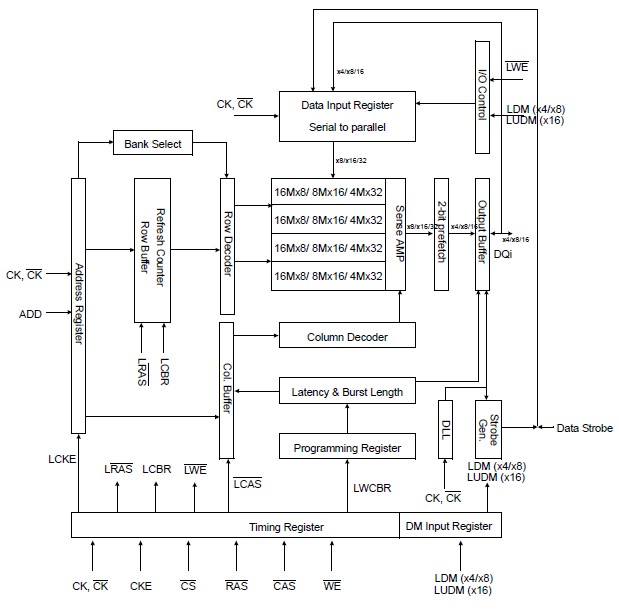

The K4H511638D-UCCC is a 536,870,912 bits, double data rate synchronous DRAM organized as 4x33,554,432 / 4× 16,777,216 / 4× 8,388,608 words by 4/8/16bits, fabricated with SAMSUNG s high performance CMOS technology. Synchronous features with Data Strobe allow extremely high performance up to 400Mb/s per pin. I/O transactions are possible on both edges of DQS. Range of operating frequencies, programmable burst length and programmable latencies allow the K4H511638D-UCCC to be useful for a variety of high performance memory system applications.

Parametrics

K4H511638D-UCCC absolute maximum ratings: (1)Voltage on any pin relative to VSS, VIN, VOUT: -0.5 ~ 3.6 V; (2)Voltage on VDD & VDDQ supply relative to VSS, VDD, VDDQ: -1.0 ~ 3.6 V; (3)Storage temperature, TSTG: -55 ~ +150 ℃; (4)Short circuit current, IOS: 50 mA.

Features

K4H511638D-UCCC features: (1)VDD : 2.5V ± 0.2V, VDDQ : 2.5V ± 0.2V for DDR266, 333; (2)VDD : 2.6V ± 0.1V, VDDQ : 2.6V ± 0.1V for DDR400; (3)Double-data-rate architecture; two data transfers per clock cycle; (4)Bidirectional data strobe [DQS] (x4,x8) & [L(U)DQS] (x16); (5)Four banks operation; (6)Differential clock inputs(CK and CK); (7)DLL aligns DQ and DQS transition with CK transition; (8)MRS cycle with address key programs: Read latency : DDR266(2, 2.5 Clock), DDR333(2.5 Clock), DDR400(3 Clock); Burst length (2, 4, 8); Burst type (sequential & interleave); (9)All inputs except data & DM are sampled at the positive going edge of the system clock(CK); (10)Data I/O transactions on both edges of data strobe; (11)Edge aligned data output, center aligned data input; (12)LDM,UDM for write masking only (x16); (13)DM for write masking only (x4, x8); (14)Auto & Self refresh; (15)7.8us refresh interval(8K/64ms refresh); (16)Maximum burst refresh cycle : 8; (17)66pin TSOP II Pb-Free package; (18)RoHS compliant.
