Product Summary

The L297 is a stepper motor controller IC. It generates four phase drive signals for two phase bipolar and four phase unipolar step motors in microcomputer-controlled applications. The motor can be driven in half step, normal and wawe drive modes and on-chip PWM chopper circuits permit switchmode control of the current in the windings. A feature of the L297 is that it requires only clock, direction and mode input signals. Since the phase are generated internally the burden on the microprocessor, and theprogrammer, is greatlyreduced. Mounted in DIP20 and SO20 packages, the L297 can be used with monolithic bridge drives such as the L298N or L293E, or with discrete transistors and darlingtons.

Parametrics

L297 absolute maxing ratings: (1)Vs Supply voltage: 10V; (2)Vi Input signals: 7V; (3)Ptot Total power dissipation (Tamb=70℃): 1W; (4)Tstg, Tj Storage and junction temperature: -40 to +150℃.

Features

L297 features: (1)normal/wave drive; (2)half/full step modes; (3)clockwise/anticlock wise direction; (4)switch mode load current regulation; (5)programmable load current; (6)few external components; (7)reset input&home output; (8)enable input.

Diagrams

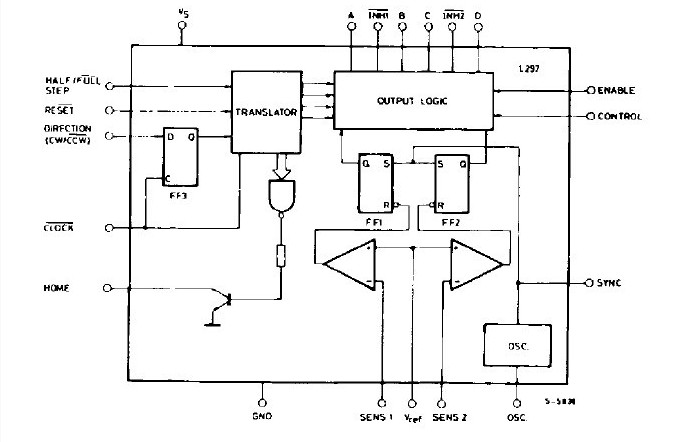

L297 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
L297
L297

Other


Data Sheet

Negotiable
L297/1
L297/1

STMicroelectronics

Motor / Motion / Ignition Controllers & Drivers Stepper Motor

Data Sheet

0-1: $5.71
1-10: $4.77
10-100: $4.30
100-250: $3.95
L297D
L297D

STMicroelectronics

Motor / Motion / Ignition Controllers & Drivers Stepper Motor

Data Sheet

0-1: $3.99
1-10: $3.87
10-100: $3.52
100-250: $3.47
L297D013TR
L297D013TR

STMicroelectronics

Motor / Motion / Ignition Controllers & Drivers Stepper Motor

Data Sheet

0-1: $5.32
1-10: $4.35
10-100: $3.94
100-250: $3.61
