Product Summary

The OP470GS is a high-performance monolithic quad operational amplifier with exceptionally low voltage noise, 5 nV/X/ Hz at 1 kHz Max, offering comparable performance to ADI industry standard OP27. Power consumption of the quad OP470GS is half that of four OP27s, a significant advantage for power conscious applications.

Parametrics

OP470GS absolute maximum ratings: (1)Supply Voltage: ±18 V; (2)Differential Input Voltage2:±1.0 V; (3)Differential Input Current2: ±25 mA; (4)Input Voltage: Supply Voltage; (5)Output Short-Circuit Duration:Continuous; (6)Storage Temperature Range:P, Y Package:–65°C to +150°C; (7)Lead Temperature Range (Soldering 60 sec):300°C; (8)Junction Temperature (Tj) :–65°C to +150°C; (9)Operating Temperature Range:–40°C to +85°C.

Features

OP470GS features: (1)Very Low-Noise; (2)Excellent Input Offset Voltage, 0.4 mV Max; (3)Low Offset Voltage Drift, 2 μV/°C Max; (4)Very High Gain, 1000 V/mV Min; (5)Outstanding CMR, 110 dB Min; (6)Slew Rate, 2 μV/μs Typ; (7)Gain-Bandwidth Product, 6 MHz Typ; (8)Industry Standard Quad Pinouts; (9)Available in Die Form.

Diagrams

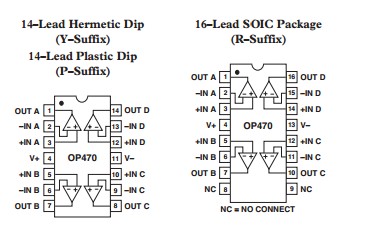

OP470GS Pin Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

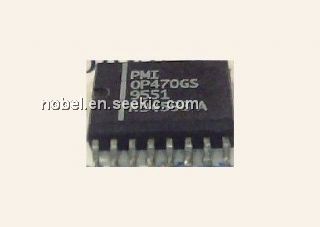

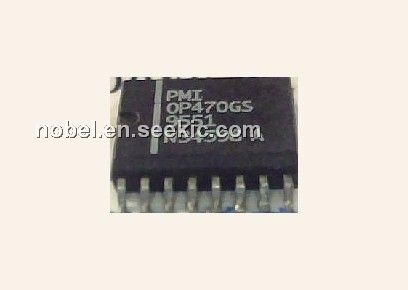

OP470GS
OP470GS


IC OPAMP GP 6MHZ QUAD LN 16SOIC

Data Sheet

0-47: $5.39
OP470GS-REEL
OP470GS-REEL


IC OPAMP GP 6MHZ QUAD LN 16SOIC

Data Sheet

0-1000: $3.55
OP470GSZ
OP470GSZ


IC OPAMP GP 6MHZ QUAD LN 16SOIC

Data Sheet

0-1: $5.82
1-10: $5.24
10-100: $4.31
100-250: $3.96
250-500: $3.61
500-1000: $3.14
1000-2500: $3.10
OP470GSZ-REEL
OP470GSZ-REEL


IC OPAMP GP 6MHZ QUAD LN 16SOIC

Data Sheet

0-1000: $3.14
