Product Summary

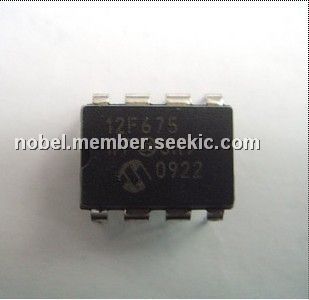

The PIC12F675-I/P is an 8-Pin, Flash-Based 8-Bit CMOS Microcontroller.
Parametrics
PIC12F675-I/P absolute maximum ratings: (1)Ambient temperature under bias: -40℃ to +125℃; (2)Storage temperature: -65℃ to +150℃; (3)Voltage on VDD with respect to VSS: -0.3 to +6.5V; (4)Voltage on MCLR and RA4 with respect to VSS: -0.3 to +13.5V; (5)Voltage on all other pins with respect to VSS: -0.3V to VDD +0.3V; (6)Total power dissipation: 800 mW; (7)Maximum current out of VSS pin: 300 mA; (8)Maximum current into VDD pin: 250 mA; (9)Input clamp current, IIK (VI < 0 or VI > VDD): ±20 mA; (10)Output clamp current, IOK (Vo < 0 or Vo >VDD): ±20 mA; (11)Maximum output current sunk by any I/O pin: 25mA; (12)Maximum output current sourced by any I/O pin: 25mA; (13)Maximum current sunk by PORTA and PORTB (Combined): 125mA; (14)Maximum current sourced by PORTA and PORTB (Combined): 125mA.
Features
PIC12F675-I/P features: (1)Only 35 Instructions to Learn: All single-cycle instructions except branches; (2)Operating Speed: DC - 20 MHz oscillator/clock input; DC - 200 ns instruction cycle; (3)Interrupt Capability; (4)8-Level Deep Hardware Stack; (5)Direct, Indirect, and Relative Addressing modes.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PIC12F675-I/P |
Microchip Technology |
8-bit Microcontrollers (MCU) 1.75KB 64 RAM 6 I/O Ind Temp PDIP8 |
Data Sheet |
|
|
||||||||||||
|
PIC12F675-I/PG |
Microchip Technology |
8-bit Microcontrollers (MCU) 1.75KB 64 RAM 6 I/O |
Data Sheet |
Negotiable |
|
||||||||||||
