Product Summary
The PM25LV080 is a 512 Kbit / 1 Mbit 3.0 Volt-only, Serial Flash Memory With 25 MHz SPI Bus Interface. It is designed to use a single low voltage, range from 2.7 Volt to 3.6 Volt, power supply to perform read, erase and program operations. The PM25LV080 can be programmed in standard EPROM programmers as well. The device is optimized for use in many commercial applications where low-power and low-voltage operation are essential. The PM25LV080 is offered in 8-pin JEDEC SOIC and 8-contact WSON packages with operation frequency up to 25 MHz.
Parametrics
PM25LV080 absolute maximum ratings: (1)Temperature Under Bias: -65℃ to +125℃; (2)Storage Temperature: -65℃ to +125℃; (3)Surface Mount Lead Soldering Temperature Standard Package: 240℃ 3 Seconds, Lead-free Package: 260℃ 3 Seconds; (4)Input Voltage with Respect to Ground on All Pins: -0.5 V to VCC + 0.5 V; (5)All Output Voltage with Respect to Ground: -0.5 V to VCC + 0.5 V; (6)VCC: -0.5 V to +6.0 V.
Features
PM25LV080 features: (1)Single Power Supply Operation; (2)Memory Organization; (3)Cost Effective Sector/Block Architecture; (4)Serial Peripheral Interface (SPI) Compatible; (5)High Performance Read; (6)Page Mode for Program Operations; (7)Block Write Protection; (8)Hardware Data Protection; (9)Page Program (up to 256 Bytes); (10)Sector, Block and Chip Erase; (11)Single Cycle Reprogramming for Status Register; (12)High Product Endurance; (13)Industrial Standard Pin-out and Package.
Diagrams
 |
 PM2503 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||||
|
PM25CL1A120 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||||
|
PM25CL1B120 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||||
|
PM25CS1D120 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||||
 |

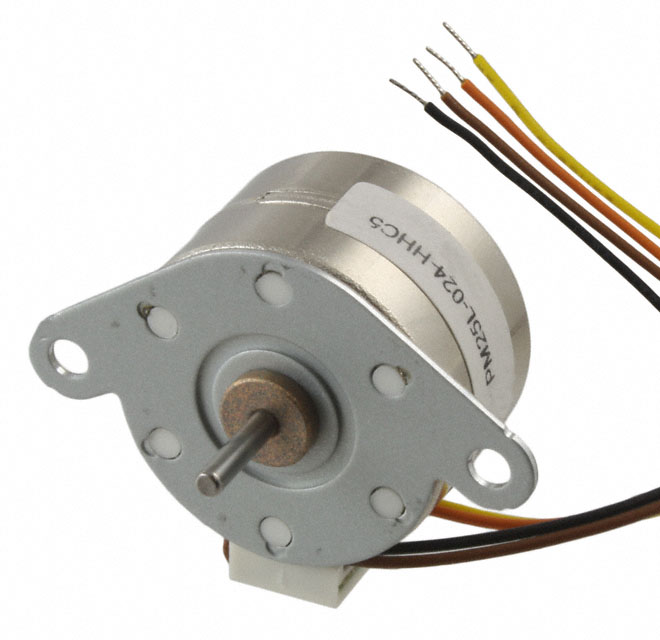

PM25L-024-HHC5 |
|
