Product Summary

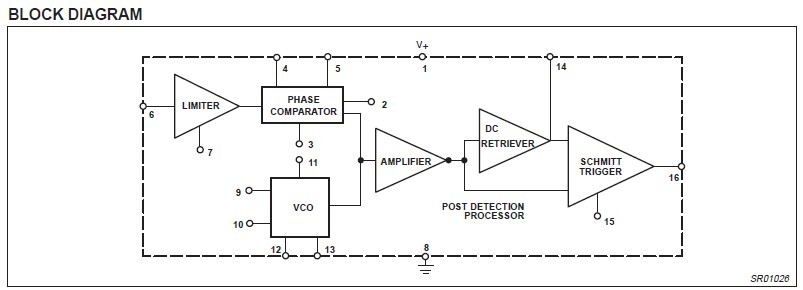

The SE564N is a versatile, high guaranteed frequency phase-locked loop designed for operation up to 50MHz. As shown in the Block Diagram, the SE564N consists of a VCO, limiter, phase comparator, and post detection processor.
Parametrics
Absolute Maximum Ratings: (1)Supply voltage Pin 1, V+: 14V; (2)Supply voltage Pin 10, V+: 6V; (3)Sink Max (Pin 9) and sourcing (Pin 11), IOUT: 11mA; (4)Bias current adjust pin (sinking), IBIAS: 1mA; (5)Power dissipation, PD: 600mW; (6)Operating ambient temperature of NE, TA: 0 to +70℃; (7)Operating ambient temperature of SE, TA: -55 to +125℃; (8)Storage temperature range, TSTG: -65 to +150℃.
Features
Features: (1)Operation with single 5V supply; (2)TTL-compatible inputs and outputs; (3)Guaranteed operation to 50MHz; (4)External loop gain control; (5)Reduced carrier feedthrough; (6)No elaborate filtering needed in FSK applications; (7)Can be used as a modulator; (8)Variable loop gain (externally controlled).
Diagrams
 |
