Product Summary

The AD8534ARZ is a single, dual and quad rail-to-rail input and output single-supply amplifier featuring 250 mA output drive current. This high output current makes the AD8534ARZ excellent for driving either resistive or capacitive loads. AC performance is very good with 3 MHz bandwidth, 5 V/ms slew rate and low distortion. All are guaranteed to operate from a 3 volt single supply as well as a 5 volt supply. The applications of the AD8534ARZ include Multimedia Audio, LCD Driver, ASIC Input or Output Amplifier and Headphone Driver.

Parametrics

AD8534ARZ absolute maximum ratings: (1)Supply Voltage (VS): 7 V; (2)Input Voltage: GND to VS; (3)Differential Input Voltage: ±6 V; (4)Storage Temperature Range: –65 to +150℃; (5)Operating Temperature Range: –40 to +85℃; (6)Junction Temperature Range: –65 to +150℃; (7)Lead Temperature Range (Soldering, 60 sec): 300℃.

Features

AD8534ARZ features: (1)Single-Supply Operation: 2.7 Volts to 6 Volts; (2)High Output Current: ±250 mA; (3)Low Supply Current: 750 μA/Amplifier; (4)Wide Bandwidth: 3 MHz; (5)Slew Rate: 5 V/μs; (6)No Phase Reversal; (7)Low Input Currents; (8)Unity Gain Stable; (9)Rail-to-Rail Input and Output.

Diagrams

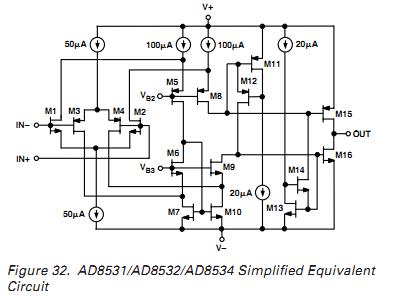

AD8534ARZ block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

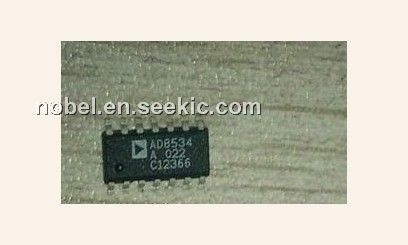

AD8534ARZ
AD8534ARZ

IC OPAMP GP R-R CMOS 3MHZ 14SOIC
Data Sheet
0-1: $1.00
1-10: $0.91
10-100: $0.73
100-250: $0.65
250-500: $0.57
500-1000: $0.47
1000-2500: $0.44
2500-5000: $0.43
