BCM5328MA1KQM

Product Summary

The Broadcom BCM5328MA1KQM device is a highly integrated solution. It combines all the functions of a high-speed switch system—including packet buffer, PHY transceivers, media access controllers, address management, and a non-blocking switch fabric—into a single 0.18μ CMOS device. It complies with the IEEE 802.3, 802.3μ, and 802.3x specifications, including the MAC control PAUSE frame and autonegotiation subsections, providing compatibility with all industry-standard Ethernet and Fast Ethernet devices. This device contains eight full-duplex 10BASE-T/100BASE-TX Fast Ethernet transceivers, each of which performs all of the physical layer interface functions for 10BASE-T Ethernet on Category 3, 4, or 5 Unshielded Twisted Pair (UTP) cable and 100BASE-TX Fast Ethernet on Category 5 UTP cable.

Parametrics

Absolute maximum ratings: (1)Supply Voltage: 2.7V to 5.5V; (2)Dissipation Power: subject as standard goods; (3)Operating Temperature: -40℃ to 85℃; (4)Package: BGA ; (5)Number of Digits: 20; (6)Number of Segments:160; (7)Package / Case:VSO-56; (8)Maximum Clock Frequency: 400 KHz; (9)Operating Supply Voltage: 8.50V; (10)Maximum Supply Current: 0.12mA; (11) Maximum Power Dissipation: 400mW; (12)Maximum Operating Temperature: +180℃; (13)Minimum Operating Temperature: -80℃.

Features

Features: (1)The highest level of silicon integration achieved for a eight port 10/100 Ethernet switch device; (2)Fourth generation switch on a chip; (3)Non-blocking up to 24 ports through a 2.6-Gbps expansion port, cascading up to three devices; (4)Packet classification 802.1p QoS priority queues; (5)Port-based VLAN; (6)MII or 7-wire interface supports an additional 100FX or 100TX connection enabling a sixth user connection or uplink; (7)Supports up to 4K MAC addresses; (8)Supports full-duplex (802.3x) and half-duplex options; (9)Supports automatic address learning and aging; (10)Internal oscillator circuit; (11)Typical power consumption: < 1.8W; (12)208-pin PQFP package.

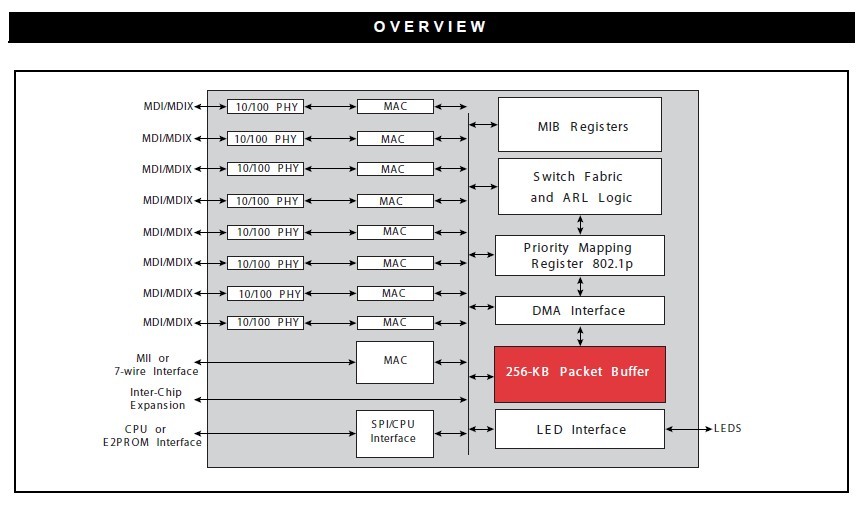

Diagrams
