Product Summary

The MRF630 is a NPN silicon RF power transistor. The ASI MRF630 is Designed for UHF large signal, FM Land Mobile Applications up to 512 MHz.

Parametrics

Absolute maximum ratings: (1)IC: 1.0 A; (2)VCEO: 16V; (3)VCES: 36V; (4)VEBO: 4.0V; (5)PDISS: 8.75 W @ TC = 25℃; (6)TJ: -65℃ to +200℃; (7)TSTG: -65 ℃ to +200℃; (8)θJC: 20℃/W.

Features

Features: (1)Grounded Emitter; (2)PG = 9.5 dB at 3.0 W/470 MHz; (3)Omnigold Metalization System.

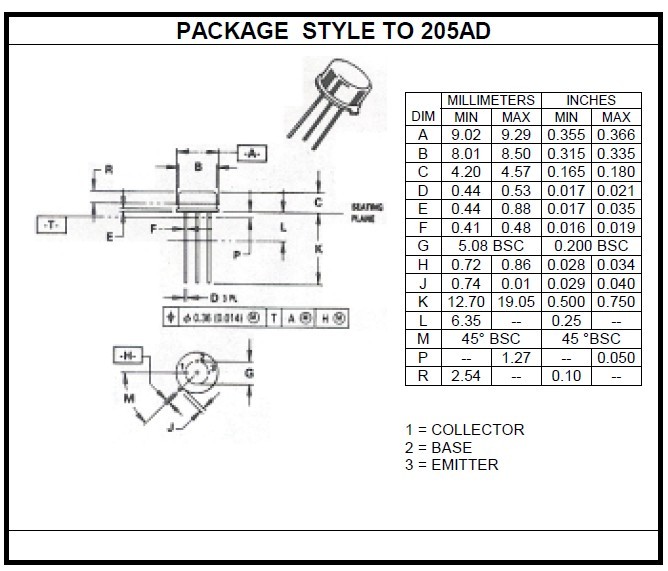

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MRF630
MRF630

Other


Data Sheet

Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MRF607
MRF607

Other


Data Sheet

Negotiable
MRF616
MRF616

Other


Data Sheet

Negotiable
MRF627
MRF627

Other


Data Sheet

Negotiable
MRF630
MRF630

Other


Data Sheet

Negotiable
MRF6414
MRF6414

Other


Data Sheet

Negotiable
MRF650
MRF650

TriQuint Semiconductor

RF Amplifier RF Bipolar Trans

Data Sheet

Negotiable
