Product Summary

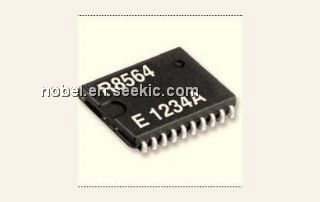

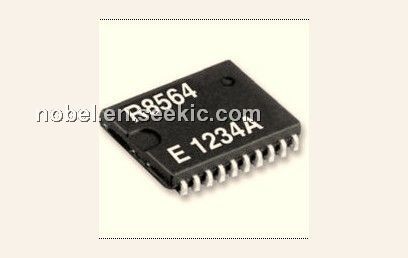

The RTC8564JE is an I2C-bus interface real time clock module.

Parametrics

RTC8564JE absolute maximum ratings: (1)Supply voltage:-0.5 to 6.5V; (2)Input voltage:-50 to 50mA; (3)Output voltage:GND-0.5 to VDD+0.5V; (4)DC Input current:-10 to 10mA; (5)DC Output current:-10 to 10mA; (6)Storage temperature Range:-55 to 125°C.

Features

RTC8564JE features: (1)Built-in crystal unit allows adjustment-free efficient operation; (2)Compliant with I2C high-speed bus specifications (400 kHz); (3)Equipped with alarm, timer, and frequency output (32.768 kHz, 1024 Hz,32 Hz,1 Hz) features; (4)Inclusion of century bit to enable correct date even after year 2000; (5)Operating in wide voltage range from 1.8 to 5.5 V, and in wide range of clock voltage from 1.2 to 5.5 V; (6)Low power consumption at 275 nA/3.0 V. (Typ.)

Diagrams

RTC8564JE pin configuration
