Product Summary

The SAB80C517A-N18-T3 is an 8-Bit CMOS Single Chip Microcontroller.

Parametrics

SAB80C517A-N18-T3 absolute maximum ratings: (1)Ambient temperature under bias: -40 to 110℃; (2)Storage temperature: -65 to 150 oC; (3)Voltage on VCC pins with respect to ground (VSS): -0.5 V to 6.5 V; (4)Voltage on any pin with respect to ground (VSS): -0.5 to VCC +0.5 V; (5)Input current on any pin during overload condition: -10mA to +10mA; (6)Absolute sum of all input currents during overload condition: 100mA; (7)Power dissipation: 1 W.

Features

SAB80C517A-N18-T3 features: (1)up to 18 MHz operation; (2)32 K * 8 ROM; (3)256 * 8 on-chip RAM; (4)2 K * 8 on-chip RAM; (5)Four 16-bit timer/counters; (6)Versatile fail-safe provisions; (7)Eight data pointers for external memory addressing; (8)Seventeen interrupt vectors, four priority levels selectable; (9)Genuine 10-bit A/D converter with 12 multiplexed inputs; (10)Two full duplex serial interfaces with programmable Baudrate Generators; (11)Extended power saving mode; (12)Fast Power-On Reset; (13)Nine ports: 56 I/O lines, 12 input lines; (14)Three temperature ranges available: – 40 to 85℃; (15)Plastic packages: P-LCC-84, P-MQFP-100-2.

Diagrams

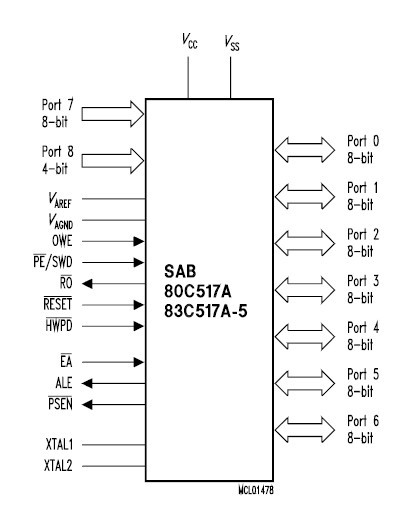

SAB80C517A-N18-T3 diagram
