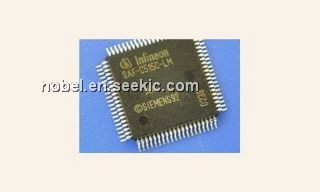

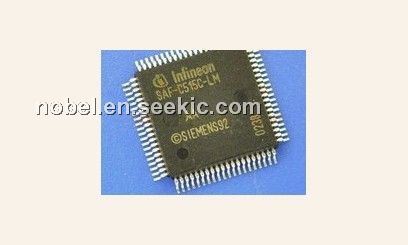

Product Summary

The SAF-C515C-LM is an 8-bit single-chip microcontroller. The SAF-C515C-LM provides two basic power saving modes, the idle mode and the power down mode. Additionally, a slow down mode is available. This power saving mode reduces the internal clock rate in normal operating mode and it can be also used for further power reduction in idle mode.

Parametrics

SAF-C515C-LM absolute maximum ratings: (1)Storage temperature, TST: -65 to 150℃; (2)Voltage on VDD pins with respect to ground (VSS), VDD: -0.5 to 6.5V; (3)Voltage on any pin with respect to ground (VSS), VIN: -0.5 to VDD+0.5V; (4)Input current on any pin during overload condition, -10 to 10 mA; (5)Absolute sum of all input currents during overload condition, –100 mA to +100mA; (6)Power dissipation, PDISS: 1W.

Features

SAF-C515C-LM features: (1)Full upward compatibility with SAB 80C515A; (2)On-chip program memory (with optional memory protection); (3)256 bytes on-chip RAM; (4)2 Kbytes of on-chip XRAM; (5)Up to 64 Kbytes external data memory; (6)Superset of the 8051 architecture with 8 datapointers; (7)Up to 10 MHz external operating frequency (1 μs instruction cycle time at 6 MHz external clock); (8)On-chip emulation support logic (Enhanced Hooks Technology); (9)Current optimized oscillator circuit and EMI optimized design.

Diagrams

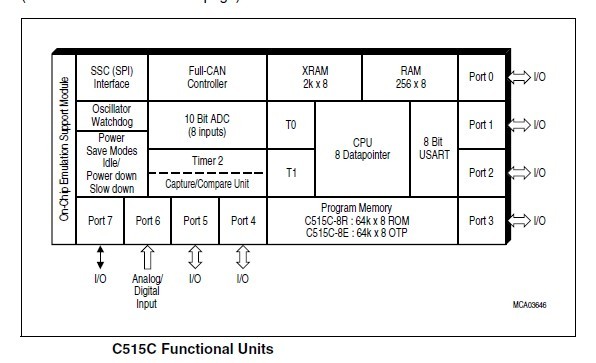

SAF-C515C-LM block diagram
