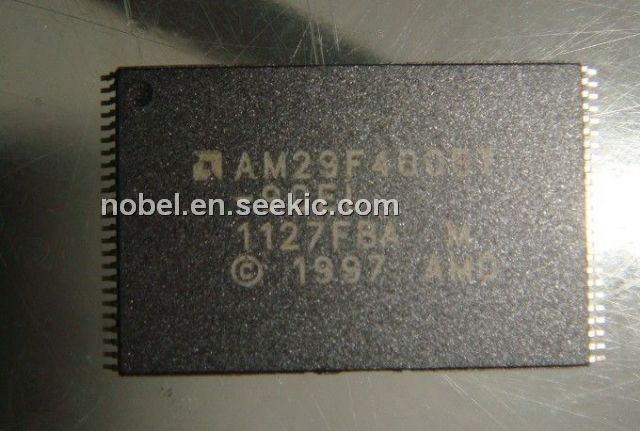

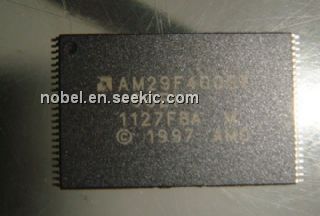

Product Summary
The AM29F400BT-90EI is a 4 Mbit, 5.0 volt-only Flash memory organized as 524,288 bytes or 262,144 words. The AM29F400BT-90EI is offered in 44-pin SO and 48-pin TSOP packages. The word-wide data (x16) appears on DQ15–DQ0; the byte-wide (x8) data appears on DQ7–DQ0. The AM29F400BT-90EI is designed to be programmed insystem with the standard system 5.0 volt VCC supply. A 12.0 V VPP is not required for write or erase operations. The AM29F400BT-90EI can also be programmed in standard EPROM programmers. This device is manufactured using AMD’s 0.35 um process technology, and offers all the features and benefits of the Am29F400, which was manufactured using 0.5 um process technology.
Parametrics
AM29F400BT-90EI absolute maximum ratings: (1)Storage Temperature: –65 to +150℃; (2)Ambient Temperature with Power Applied: –55 to +125℃; (3)Voltage with Respect to Ground VCC: –2.0 V to +7.0 V; A9, OE#, and RESET#:–2.0 V to +12.5 V; All other pins: –0.5 V to +7.0 V; (4)Output Short Circuit Current: 200 mA.
Features
AM29F400BT-90EI features: (1)Single power supply operation; (2)Manufactured on 0.35 μm process technology; (3)High performance; (4)Low power consumption (typical values at 5 MHz); (5)Flexible sector architecture; (6)Top or bottom boot block configurations available; (7)Embedded Algorithms; (8)Minimum 1,000,000 program/erase cycles per sector guaranteed; (9)Compatibility with JEDEC standards; (10)Data# Polling and toggle bits; (11)Ready/Busy# pin (RY/BY#); (12)Erase Suspend/Erase Resume; (13)Hardware reset pin (RESET#).

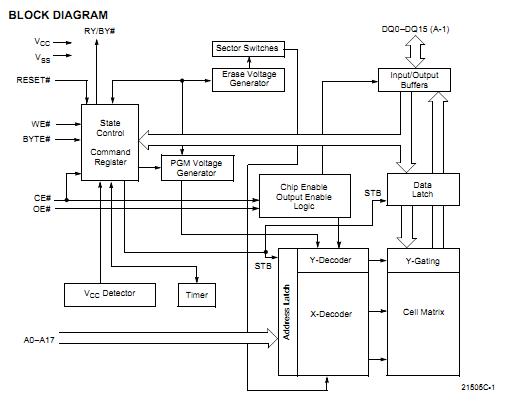

Diagrams
