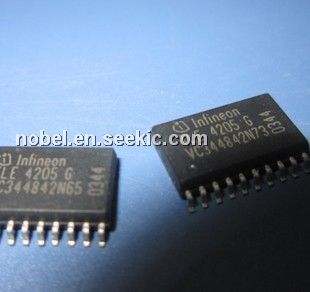

TLE4205G

DC-motor driver, PDSO-20, 6 V ~ 32 V, 1A, TLE4205G

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.23~6.04 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	6.04 / Piece
11 ~ 100 :	4.98 / Piece
101 ~ 500 :	3.23 / Piece

PartNumber:: TLE4205G

Brand:: Infineon Technologies AG - Infineon | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 1000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Datasheet:: TLE4205G Datasheet download

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Lucas's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-06

From Other Seller

Part Number:TLE4205G
US $3.23 - 6.04
Quantity:

piece

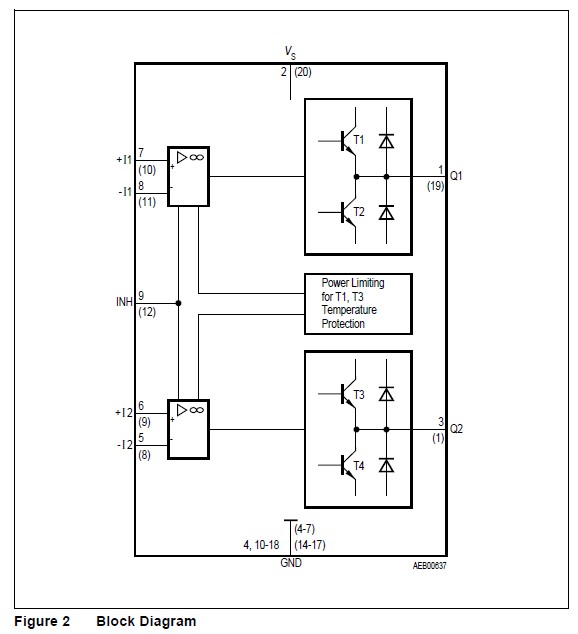

Product Summary

The TLE4205G is an integrated power full-bridge DC-motor driver for a wide temperature range, as required in automotive applications for example. The TLE4205G contains two power comparators that can be combined to a full-bridge circuit. For inductive loads there are integrated free-wheeling diodes to + VS and ground. The outputs are shortcircuit proof up to 18 V supply voltage to ground and turn off when overtemperature occurs. This IC TLE4205G is especially suitable for headlight-beam adjustment in automobiles.

Parametrics

TLE4205G absolute maximum ratings: (1)Supply voltage, VS: – 0.3 to 45 V; (2)Differential input voltage, VID: ± VS V max at ΔV8-9 or ΔV10-11; (3)Output current, IQ: – 1 to 1 A ; (4)Supply current, IS: 2.5 to 3 A ; (5)Ground current, IGND: – 3 to 2.5 A ; (6)Input voltage, VI: – 15 to VS at V8; V9; V10; V11; (7)Inhibit input, VInh: – 15 to VS V at V12 ; (8)Junction temperature, Tj: – 150 ℃ max; (9)Storage temperature, Tstg: – 50 to 150 ℃.

Features

TLE4205G features: (1)Max. driver current 1 A; (2)Integrated free-wheeling diodes; (3)Short-circuit proof to ground; (4)Inhibit; (5)ESD protected inputs; (6)Temperature range – 40 ℃ ≤ Tj ≤ 150 ℃.
