Product Summary

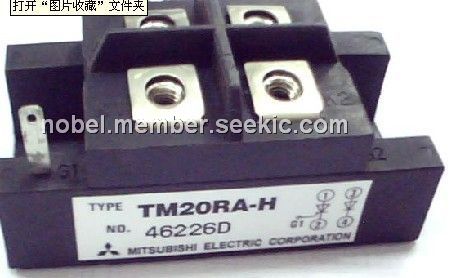

The TM20RA-H is a mitsubishi thyristor module. The applications of the TM20RA-H include: DC motor control, NC equipment, Inverters, Servo drives, contactless switches, electric furnace temperature control, light dimmers.

Parametrics

TM20RA-H absolute maximum ratings: (1)VRRM Repetitive peak reverse voltage: 800V; (2)VRSM Non-repetitive peak reverse voltage: 960V; (3)VR (DC) DC reverse voltage: 640V; (4)VDRM Repetitive peak off-state voltage: 800V; (5)VDSM Non-repetitive peak off-state voltage: 960V; (6)VD (DC) DC off-state voltage: 640V.

Features

TM20RA-H features: (1)IT (AV) Average on-state current: 20A; (2)IF (AV) Average forward current: 20A; (3)VRRM Repetitive peak reverse voltage: 400/800V; (4)VDRM Repetitive peak off-state voltage: 400/800V; (5)MIX DOUBLE ARMS; (6)Insulated Type; (7)UL Recognized.

Diagrams

TM20RA-H diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TM20RA-H
TM20RA-H

Other


Data Sheet

Negotiable
