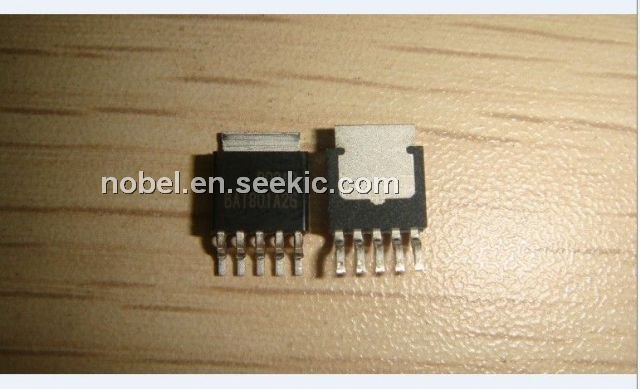

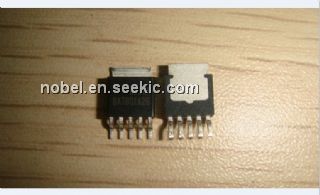

Product Summary
The DD312 is a high constant current driver designed for LED lighting application and power LEDs. The DD312 incorporates a constant current circuitry with current value set by an external resistor. The output enable terminal allows dimming control by system. The fast response of output current can adapt to high dimming resolution and high refresh rate applications. Built-in LED open detection, over temperature, and over current protection functions ensure the system reliability.
Parametrics
DD312 absolute maximum ratings: (1)Supply Voltage:-0.3V to 18V ; (2)Input Voltage:-0.3V to VDD+0.3V ; (3)Output Current:1.0A ; (4)Output Voltage:-0.3V to 18V ; (5)Enable Voltage:-0.3V to 18V ; (6)Output Enable Frequency:1MHz ; (7)GND Terminal Current:1.01A ; (8)Power Dissipation:3.27W ; (9)Thermal Resistance (Junction to Air):30.6℃/W ; (10)Operating Temperature:-40℃ to 85℃; (11)Storage Temperature:-55℃ to 150℃.
Features
DD312 features: (1)Maximum output current: 1A (determined by the external resistor) ; (2)Minimum output voltage: 1V (Iout = 1A) ; (3)Maximum output voltage: 18V ; (4)Output enable terminal: 1MHz (max.) ; (5)Supply voltage range: 5V to 18V ; (6)Over current protection ; (7)Thermal shutdown.

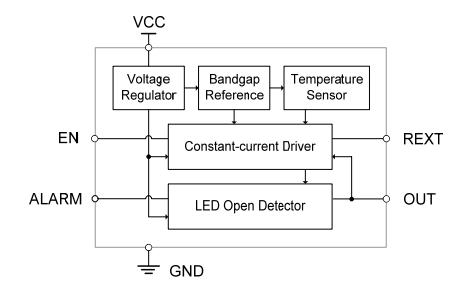

Diagrams
