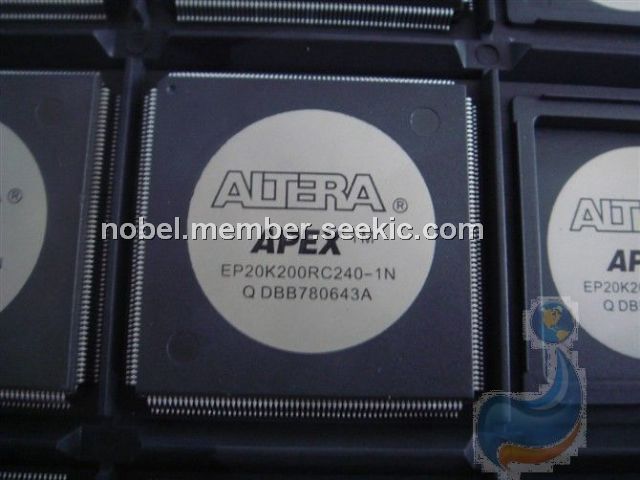

Product Summary

The EP20K200RC240-1N device is the first PLD designed with the MultiCore architecture, which combines the strengths of LUT-based and productterm-based devices with an enhanced memory structure. LUT-based logic provides optimized performance and efficiency for data-path, registerintensive, mathematical, or digital signal processing (DSP) designs. Product-term-based logic is optimized for complex combinatorial paths, such as complex state machines. LUT- and product-term-based logic combined with memory functions and a wide variety of MegaCore and AMPP functions make the EP20K200RC240-1N device architecture uniquely suited for system-on-a-programmable-chip designs. Applications historically requiring a combination of LUT-, product-term-, and memory-based devices can now be integrated into one EP20K200RC240-1Ndevice. The EP20K200RC240-1N device is a superset of APEX 20K devices and include additional features such as advanced I/O standard support, CAM, additional global clocks, and enhanced ClockLock clock circuitry. In addition, EP20K200RC240-1N device extend the APEX 20K family to 1.5 million gates. EP20K200RC240-1N device is denoted with an E suffix in the device name.

Parametrics

Absolute maximum ratings: (1)Supply voltage With respect to ground, VCCINT: -0.5 to 3.6V; (2)Supply voltage With respect to ground, VCCIO: -0.5 to 4.6V; (3)DC input voltage, VI: -2.0 to 5.75V; (4)DC output current, per pin, IOUT: -25 to 25mA; (5)Storage temperature No bias, TSTG: -65 to 150℃; (6)Ambient temperature Under bias, TAMB: -65 to 135℃; (7)Junction temperature, PQFP, RQFP, TQFP, and BGA packages, under bias, TJ: 135℃; (8)Ceramic PGA packages, under bias, TJ: 150℃.

Features

Features: (1)Industrys first programmable logic device (PLD) incorporating system-on-a-programmable-chip (SOPC) integration; (2)High density; (3)Flexible clock management circuitry with up to four phase-locked loops (PLLs); (4)Advanced interconnect structure; (5)Advanced packaging options; (6)Advanced software support.

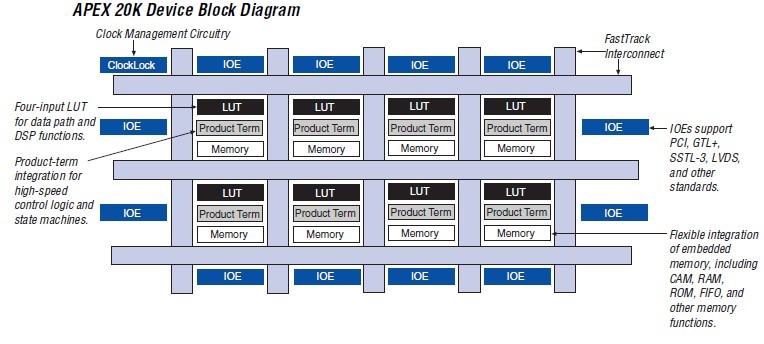

Diagrams
