EPM7128STC100-15N

high-density, high-performance PLD, QFP-100, –2.0 to 7.0 V, –25 to 25 mA, EEPROM-based, PCI-compliant

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.47~6.45 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	6.45 / Piece
11 ~ 100 :	4.89 / Piece
101 ~ 500 :	3.47 / Piece

PartNumber:: EPM7128STC100-15N

Brand:: Altera Corporation - ALTR | Pack: QFP | D/C: 11+

Availability:: Supply Ability: 1000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Lucas's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-10

From Other Seller

Part Number:EPM7128STC100-15N
US $3.47 - 6.45
EPM7128STC100-15N

US $2.30 - 2.80 / Piece
(0) Remove
Quantity:

piece

Product Summary

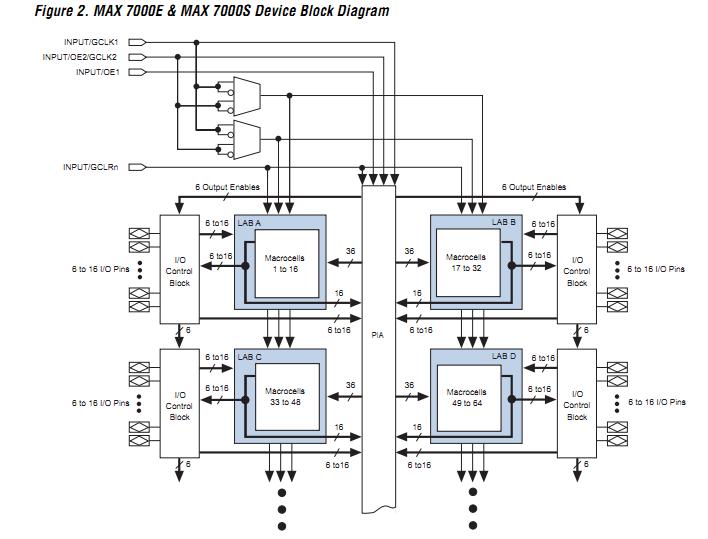

The EPM7128STC100-15N is a high-density, high-performance PLD. It is based on Altera’s second-generation MAX architecture. Fabricated with advanced CMOS technology, the EEPROM-based EPM7128STC100-15N provides 600 to 5,000 usable gates, ISP, pin-to-pin delays as fast as 5 ns, and counter speeds of up to 175.4 MHz.

Parametrics

EPM7128STC100-15N absolute maximum ratings: (1)VCC, Supply voltage With respect to ground: –2.0 to 7.0 V; (2)VI, DC input voltage: –2.0 to 7.0 V; (3)IOUT, DC output current, per pin: –25 to 25 mA; (4)TSTG, Storage temperature No bias: –65 to 150℃; (5)TAMB, Ambient temperature Under bias: –65 to 135℃; (6)TJ, Junction temperature Ceramic packages, under bias: 150℃; (7)PQFP and RQFP packages, under bias: 135℃.

Features

EPM7128STC100-15N features: (1)High-performance, EEPROM-based programmable logic devices (PLDs) based on second-generation MAX architecture; (2)5.0-V in-system programmability (ISP) through the built-in IEEE Std. 1149.1 Joint Test Action Group (JTAG) interface available in MAX 7000S devices, ISP circuitry compatible with IEEE Std. 1532; (3)Includes 5.0-V MAX 7000 devices and 5.0-V ISP-based MAX 7000S devices; (4)Built-in JTAG boundary-scan test (BST) circuitry in MAX 7000S devices with 128 or more macrocells; (5)Complete EPLD family with logic densities ranging from 600 to 5,000 usable gates (see Tables 1 and 2); (6)5-ns pin-to-pin logic delays with up to 175.4-MHz counter frequencies (including interconnect); (7)PCI-compliant devices available.
