Product Summary
The KU80386EX33 is an embedded processor which operates at 25 or 33 MHz at 5 V nominal.
Parametrics
KU80386EX33 absolute maximum ratings: (1)storage temperature: -65 to +150 ℃; (2)supply voltage with respect to VSS: -0.5 to 6.5 V; (3)voltage on other pins: -0.5 to VCC+0.5 V; (4)VCC: 4.5 to 5.5 V; (5)TCASE: -40 ℃; (6)FOSC: 0 to 33 MHZ.
Features
KU80386EX33 features: (1)static Intel386 CPU core; (2)transparent power-management system architecture; (3)powerdown mode; (4)full 32-bit internal architecture; (5)runs Intel386 architecture software in a cost-effective 16-bit hardware environment; (6)high-performance 16-bit data bus; (7)large uniform address space.

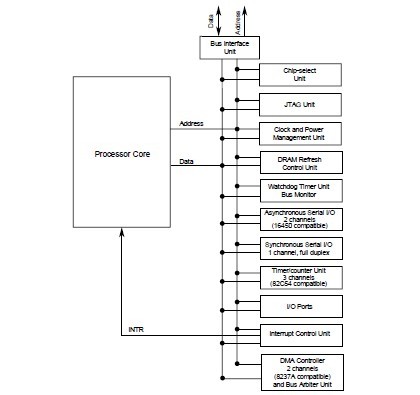

Diagrams
