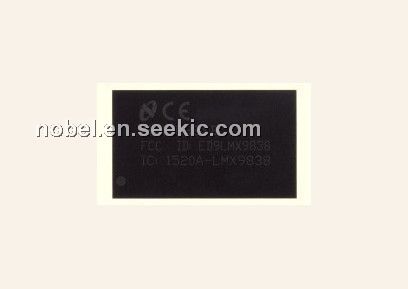

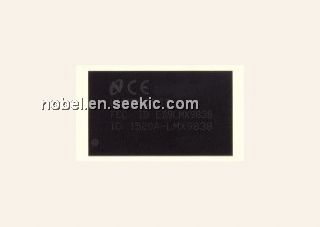

The LMX9838SB Bluetooth Serial Port module is a fully integrated Bluetooth 2.0 baseband controller, 2.4 GHz radio, crystal, antenna, LDO and discreets; combined to form a complete small form factor (10 mm x 17 mm x 2.0 mm) Bluetooth node. The LMX9838SB includes a configurable service database to fulfil service requests for additional profiles on the host. Moreover, the LMX9838SB is qualified as a Bluetooth endproduct, ready to be used in the end application without additional testing and license cost.
Parametrics
LMX9838SB absolute maximum ratings: (1)Digital Voltage Regulator input: -0.2 to 4 V; (2)Voltage on any pad with GND = 0V: -0.2 to VCC + 0.2 V; (3)Storage Temperature Range: -65 to +150 °C; (4)Lead Temperature NOPB:250 °C; (5)ESD - Human Body Model: 2000 V; (6)ESD - Machine Model: 200 V; (7)ESD - Charge Device Model: 250 V.
Features
LMX9838SB features: (1)High Integration: Includes Antenna, crystal, EEPROM, LDO; (2)Supporting up to 7 active Bluetooth data links and 1 active SCO link; (3)Class 2 operation; (4)UART Command/Data port speed up to 921.6kbits/s; (5)Advanced Audio Interface for external PCM codec; (6)Better than -80dBm input sensitivity; (7)FCC certified: FCC ID: ED9LMX9838; (8)IC certified: IC-1520A-LMX9838; (9)CE Self certified; (10)Bluetooth SIG QD ID: B012394; (11)Compact Size: 10mm x 17mm x 2.0mm.

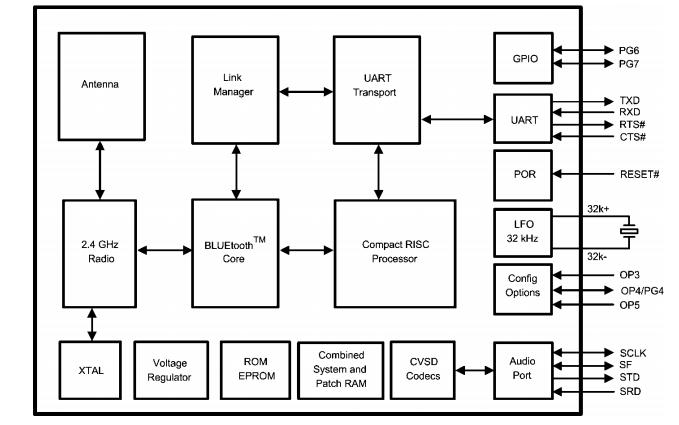

Diagrams
