Product Summary
The OP07AZ/883 has very low input offset voltage (25μV max for OP07AZ/883) which is obtained by trimming at the wafer stage.These low offset voltages generally eliminate any need for external nulling.The OP07 also features low input bias current(±2nA for OP07A)and high open-loop gain (300V/mV for OP07A).The low offsets and high open-loop gain make the OP07 particularly useful for high-gain instrumentation applications. The wide input voltage range of ±13V minimum combined with high CMRR of 110dB(OP07A) and high input impedace provides high accuracy in the noninverting circuit configuration. Excellent linearity and gain accurancy can be maintained even at high closed-loop gains. Stability of offsets and with time or variations in temperture is sxecellent.the accuracy and stability of the OP07,even at high gain,combined with the freedom from external nulling have made the OP07 a new industry standard for instrumentation and military applications.The OP07 is available in five standard performance grades.The OP07A and the OP07 are specified for operation over the full military range of -55℃ to +125℃.
Parametrics
Absolute maximum ratings: (1)supply voltage: ±22V; (2)Differential input voltage: ±30V; (3)input voltage: ±22V; (4)output short circuit duration: indefinite; (5)storage tempreture range, J, RC and Z packages: -65℃ to +150℃; (6)operating tempreture range: -55℃ to +125℃; (7)lead tempreture: +300℃; (8)junction tempreture(Tj): +150℃.
Features
Features: (1)low Vos: 25μA MAX; (2)Low Vos/drift: 0.6μV/℃ MAX; (3)ultra stable vs time: 1.0μV/month Max; (4)low noise: 0.6μ Vp-p Max; (5)wide input voltage range: ±14V; (6)wide supply voltage range: ±3V to ±18V; (7)fits 725, 108A/308, 741, AD510 sockets; (8)125℃ temperature testes dice.

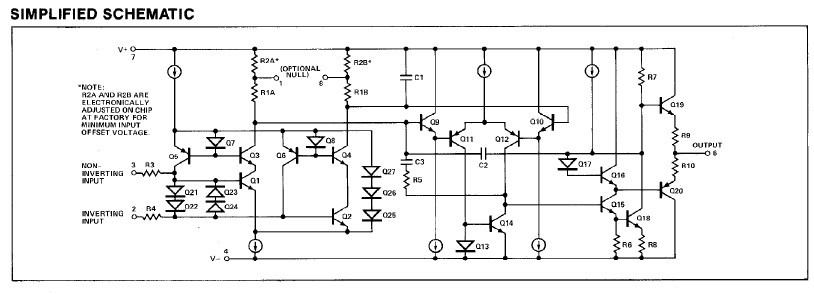

Diagrams

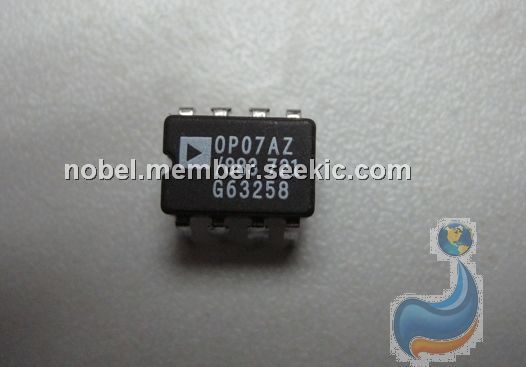

Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
OP07AZ/883B |
Maxim Integrated Products |
Operational Amplifiers - Op Amps |
Data Sheet |
Negotiable |
|
|||||
