Product Summary

The MAX274AEWI is a continuous-time active filter consisting of independent cascadable 2nd-order sections. Each section can implement any all-pole bandpass or lowpass filter response, such as Butter- worth, Bessel, and Chebyshev, and is programmed by four external resistors. The MAX274AEWI provides lower noise than switched-capacitor filters, as well as superior dynamic performance - both due to the confitinuous-time design. Since continuous-time filters do not require a clock, aliased and clock noise are eliminated with the MAX274AEWI.

Parametrics

MAX274AEWI absolute maximum ratings: (1)V+toV-: -0.3V to 12V; (2)Input Voltage to GND (any input): V-- 0.3V to V++ 0.3V; (3)Continuous Power Dissipation (Ta = +70℃): 1000mW; (4)Operating Temperature Ranges: 0℃ to +70℃; (5)Storage Temperature Range: -65℃ to +165℃; (6)Lead Temperature (soldering, 10 sec): +300℃.

Features

MAX274AEWI features: (1)Continuous-Time Filter - No Clock, No Clock Noise; (2)Implement Butterworth, Chebyshev, Bessel and Other Filter Responses; (3)Lowpass, Bandpass Outputs; (4)Operate from a Single +5V Supply or Dual ±5V Supplies; (5)Design Software Available; (6)MAX274 Evaluation Kit Available; (7)8th-Order - Four 2nd-Order Sections (MAX274)4th-Order - Two 2nd-Order Sections (MAX275); (8)Center-Frequency Range: 150kHz for MAX274 300kHz for MAX275; (9)Low Noise: -86dB THD Typical for MAX274 -89dB THD Typical for MAX275; (10)Center-Frequency Accurate Over Temp: within ±1% for MAX274 within ±0.9% for MAX275.

Diagrams

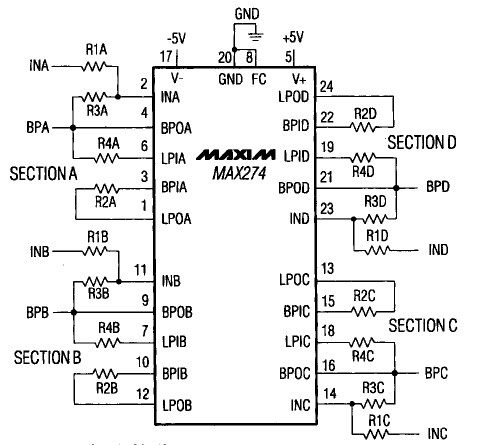

MAX274AEWI pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MAX274AEWI
MAX274AEWI

Maxim Integrated Products

Active Filters

Data Sheet

Negotiable
MAX274AEWI+
MAX274AEWI+

Maxim Integrated Products

Active Filters 4th & 8th Order Continuous-Time

Data Sheet

0-1: $13.87
1-25: $9.44
25-50: $6.84
50-100: $6.29
MAX274AEWI+T
MAX274AEWI+T

Maxim Integrated Products

Active Filters 4th & 8th Order Continuous-Time

Data Sheet

0-777: $6.01
777-1000: $5.85
MAX274AEWI-T
MAX274AEWI-T

Maxim Integrated Products

Active Filters

Data Sheet

Negotiable
