Product Summary

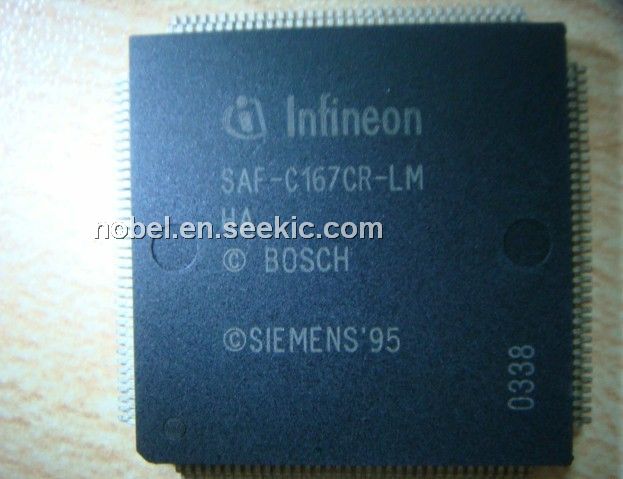

The SAF-C167CR-LMHA is a 16-Bit CMOS Single-Chip Microcontroller. The SAF-C167CR-LMHA combines high CPU performance (up to 16.5 million instructions per second) with high peripheral functionality and enhanced IO-capabilities. The SAF-C167CR-LMHA also provides clock generation via PLL and various on-chip memory modules such as program ROM, internal RAM, and extension RAM.
Parametrics
SAF-C167CR-LMHA absolute maximum ratings: (1)Storage temperature TST: -65 to 150 ℃; (2)Junction temperature TJ: -40 to 150 ℃; (3)Voltage on VDD pins with respect to ground (VSS) VDD: -0.5 to 6.5 V; (4)Voltage on any pin with respect to ground (VSS) VIN: -0.5 to VDD + 0.5 V; (5)Input current on any pin during overload condition: -10 to 10mA; (6)Absolute sum of all input currents during overload condition: 100mA; (7)Power dissipation PDISS: 1.5 W.
Features
SAF-C167CR-LMHA features: (1)80/60 ns Instruction Cycle Time at 25/33 MHz CPU Clock; (2)400/303 ns Multiplication (16 × 16 bits), 800/606 ns Division(32 / 16 bits); (3)Enhanced Boolean Bit Manipulation Facilities; (4)Additional Instructions to Support HLL and Operating Systems; (5)Register-Based Design with Multiple Variable Register Banks; (6)Single-Cycle Context Switching Support; (7)16 Mbytes Total Linear Address Space for Code and Data; (8)1024 Bytes On-Chip Special Function Register Area.

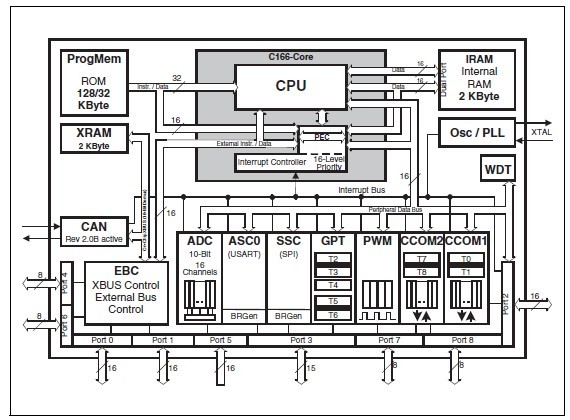

Diagrams
