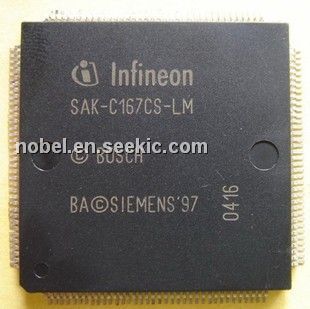

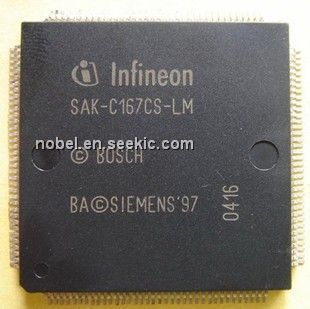

SAK-C167CS-LM

16-Bit Single-Chip Microcontroller, QFP, –0.5 to 6.5 V, 1.5W, –10 to 10 mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $5.65~8.11 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	8.11 / Piece
11 ~ 100 :	6.89 / Piece
101 ~ 500 :	5.65 / Piece

PartNumber:: SAK-C167CS-LM

Brand:: Infineon Technologies AG - Infineon | Pack: QFP | D/C: 10+

Availability:: Supply Ability: 1000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Datasheet:: SAK-C167CS-LM Datasheet download

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Lucas's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-06

From Other Seller

Part Number:SAK-C167CS-LM
US $5.65 - 8.11
SAK-C167CS-LM

US $16.95 - 26.65 / Piece
(0) Remove
Quantity:

piece

Product Summary

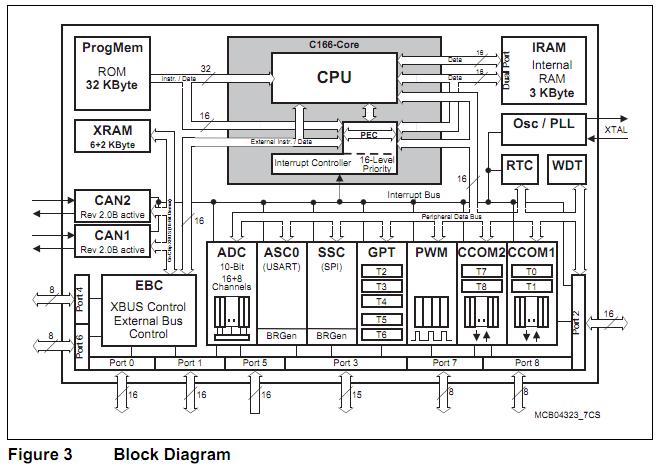

The SAK-C167CS-LM is a 16-Bit Single-Chip Microcontroller. The SAK-C167CS-LM derivatives are high performance derivatives of the Infineon C166 Family of full featured single-chip CMOS microcontrollers. They combine high CPU performance (up to 16.5 million instructions per second) with high peripheral functionality and enhanced IO-capabilities. The SAK-C167CS-LM also provides clock generation via PLL and various on-chip memory modules like program ROM, internal RAM, and extension RAM.

Parametrics

SAK-C167CS-LM absolute maximum ratings: (1)Storage temperature TST: –65 to 150℃; (2)Junction temperature TJ: –40 to 150℃; (3)Voltage on VDD pins with respect to ground (VSS), VDD: –0.5 to 6.5 V; (4)Voltage on any pin with respect to ground (VSS), VIN: –0.5 to VDD + 0.5 V; (5)Input current on any pin during overload condition: –10 to 10 mA; (6)Absolute sum of all input currents during overload condition: |100| mA; (7)Power dissipation PDISS: 1.5W.

Features

SAK-C167CS-LM features: (1)High Performance 16-bit CPU with 4-Stage Pipeline; (2)16-Priority-Level Interrupt System with 56 Sources, Sample-Rate down to 40/30 ns; (3)8-Channel Interrupt-Driven Single-Cycle Data Transfer Facilities via Peripheral Event Controller (PEC); (4)Clock Generation via on-chip PLL (factors 1:1.5/2/2.5/3/4/5), via prescaler or via direct clock input; (5)Idle, Sleep, and Power Down Modes with Flexible Power Management; (6)Programmable Watchdog Timer and Oscillator Watchdog; (7)Up to 111 General Purpose I/O Lines, partly with Selectable Input Thresholds and Hysteresis.
