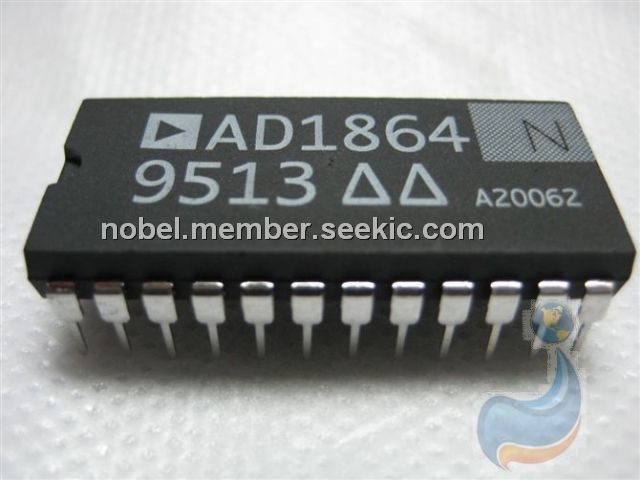

Product Summary

The AD1864N is a complete dual 18-bit DAC offering excellent THD+N, while requiring no external components. Two complete signal channels are included. This results in cophased voltage or current output signals and eliminates the need for output demultiplexing circuitry. The monolithic AD1864N chip includes CMOS logic elements, bipolar and MOS linear elements and laser-trimmed thin-film resistor elements, all fabricated on Analog Devices BiMOS II process.

Parametrics

Absolute maximum ratings:(1)VL to DGND: 0 V to 13.2 V; (2)VS to AGND: 0 V to 13.2 V; (3)–VL to DGND: –13.2 V to 0 V; (4)–VS to AGND: –13.2 V to 0 V; (5)AGND to DGND: +0.3 V; (6)Digital Inputs to DGND: –0.3 V to VL; (7)Short-Circuit Protection: Indefinite Short to Ground; (8)Soldering (10 sec): +300℃.

Features

Features: (1)Dual Serial Input, Voltage Output DACs; (2)No External Components Required; (3)Operates at 8 × Oversampling per Channel; (4)± 65 V to ± 12 V Operation; (5)Cophased Outputs; (6)115 dB Channel Separation; (7)± 0.3% Interchannel Gain Matching; (8)0.0017% THD+N.

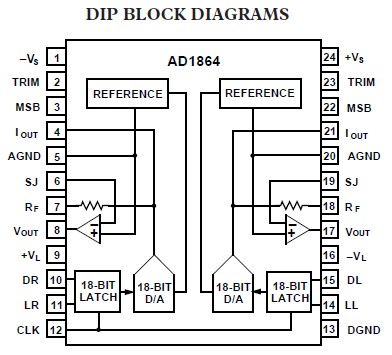

Diagrams
