Product Summary
16-Channel Constant Current LED Driver
FEATURES
?? 16 Constant current-sink channels
?? Serial interface up to 25MHz clock frequency
?? 3V to 5.5V logic supply
?? LED current range from 2mA to 100mA
?? LED current set by external RSET resistor
?? 300mV LED dropout at 30mA
?? Thermal shutdown protection
?? Available in RoHS-compliant 24-lead SOIC,
TSSOP, QSOP, and 4 x 4mm TQFN packages
APPLICATION
?? Billboard Display
?? Marquee Display
?? Instrument Display
?? General Purpose Display
For Ordering Information details, see page 14.
DESCRIPTION

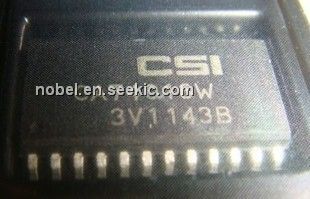

The CAT4016 is a 16 channel constant current driver
for LED billboard and other general display
applications. LED channel currents are programmed
together via an external RSET resistor. Low output
voltage operation on the LED channels as low as 0.4V
(for 2 to 100mA LED current) allows for more power
efficient designs.
A high-speed 4-wire serial interface of up to 25MHz
clock frequency controls each individual channel using
a shift register and latch configuration. A serial output
data pin (SOUT) allows multiple devices to be
cascaded and programmed via one serial interface.
The device also includes a blanking control pin
(BLANK) that can be used to disable all channels
independently of the interface.
Thermal shutdown protection is incorporated in the
device to disable the LED outputs if the die
temperature exceeds a set limit.
The device is available in the 24-lead SOIC, TSSOP,
QSOP and the compact TQFN 4 x 4mm packages.
TYPICAL APPLICATION CIRCUIT
VDD LED1
VIN
3V to
5.5V
1μF 20mA
3kΩ
BLANK
LATCH
