Product Summary

The MAX963ESD is a low-power, ultra-high-speed comparator with internal hysteresis. The device is optimized for single +3V or +5V operation. The input common-mode range extends 100mV Beyond-the-Rails, and the outputs can sink or source 4mA to within 0.52V of GND and VCC. Propagation delay is 4.5ns (5mV overdrive), while supply current is 5mA per comparator. The MAX963ESD has a shutdown mode in which it consumes only 270μA supply current per comparator. The applications of the MAX963ESD include: Single 3V/5V Systems, Portable/Battery-Powered Systems, Threshold Detectors/Discriminators, GPS Receivers, Line Receivers, Zero-Crossing Detectors, High-Speed Sampling Circuits.

Parametrics

MAX963ESD absolute maximum ratings: (1)Supply Voltage, VCC to GND: -0.3V to +6V; (2)All Other Pins: -0.3V to (VCC + 0.3V); (3)Duration of Output Short Circuit to GND or VCC: Continuous; (4)Continuous Power Dissipation (TA = +70℃) 5-Pin SOT23 (derate 7.1mW/℃ above +70℃): 571mW/℃; (5)Storage Temperature Range: -65℃ to +160℃; (6)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX963ESD features: (1)Ultra-Fast, 4.5ns Propagation Delay; (2)Ideal for +3V and +5V Single-Supply Applications; (3)Beyond-the-Rails Input Voltage Range; (4)3.5mV Internal Hysteresis for Clean Switching; (5)Output Latch; (6)TTL/CMOS-Compatible Outputs; (7)270μA Shutdown Current per Comparator; (8)Available in Space-Saving Packages: 8-Pin μMAX.

Diagrams

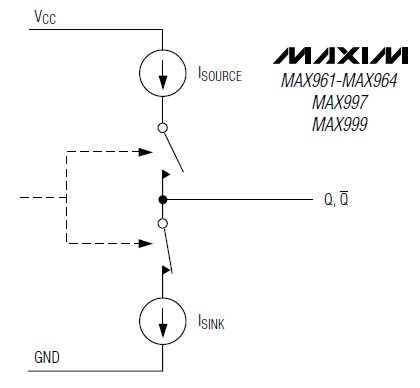

MAX963ESD diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MAX963ESD
MAX963ESD
Maxim Integrated Products
Comparator ICs Dual Comparator
Data Sheet
0-2085: $2.59
MAX963ESD+
MAX963ESD+
Maxim Integrated Products
Comparator ICs Dual Comparator
Data Sheet
0-1: $6.42
1-25: $4.31
25-50: $3.12
50-100: $3.09
MAX963ESD+T
MAX963ESD+T
Maxim Integrated Products
Comparator ICs Dual Comparator
Data Sheet
0-2080: $2.64
2080-2500: $2.64
MAX963ESD-T
MAX963ESD-T
Maxim Integrated Products
Comparator ICs Dual Comparator
Data Sheet
0-2080: $2.64
2080-2500: $2.64
