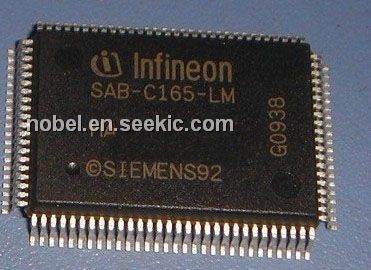

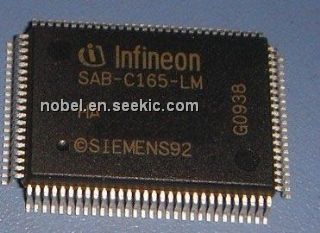

Product Summary

The SAB-C165-LM is a 16-Bit Single-Chip Microcontroller. The architecture of the SAB-C165-LM combines advantages of both RISC and CISC processors and of advanced peripheral subsystems in a very well-balanced way. In addition the on-chip memory blocks allow the design of compact systems with maximum performance. The following block diagram gives an overview of the different on-chip components and of the advanced, high bandwidth internal bus structure of the SAB-C165-LM.

Parametrics

SAB-C165-LM absolute maximum ratings: (1)Storage temperature TST: - 65 to 150℃; (2)Junction temperature TJ - 40 to 150℃; (3)Voltage on VDD pins with respect to ground (VSS) VDD - 0.5 to 6.5V; (4)Voltage on any pin with respect to ground (VSS) VIN - 0.5 to VDD + 0.5V; (5)Input current on any pin during overload condition: -10 to 10mA ; (6)Absolute sum of all input currents during overload condition: |100|mA; (7)Power dissipation PDISS: 1.5W.

Features

SAB-C165-LM features: (1)Standard digital supply voltage (5 V versions) VDD: 4.5 to 5.5V ; (2)Reduced digital supply voltage (3 V versions) VDD: 3.0 to 3.6V ; (3)Digital ground voltage VSS: 0V; (4)Overload current IOV: ±5mA; (5)Absolute sum of overload currents: 5 mA; (6)External Load Capacitance CL: 100pF.

Diagrams

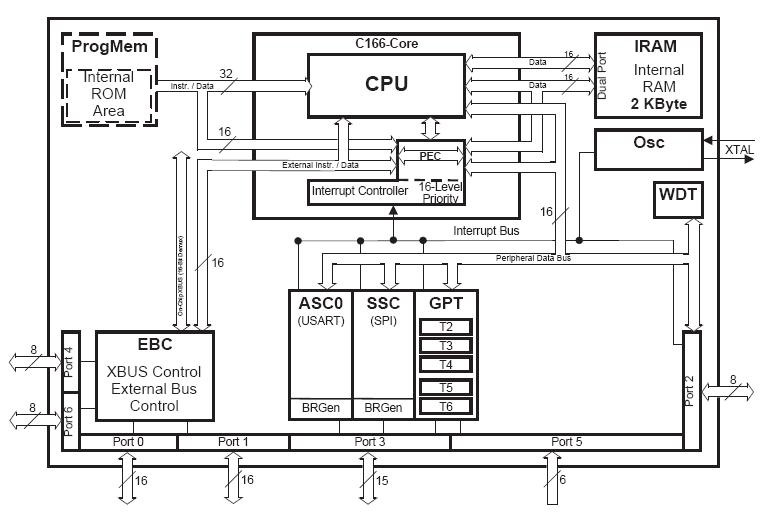

SAB-C165-LM block diagram
