Product Summary

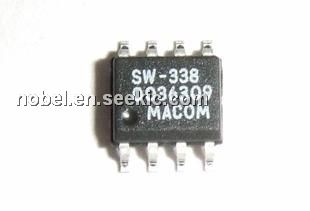

The SW-338TR is a GaAs MMIC SPDT terminated switch in a low cost SOIC 8-lead surface mount plastic package. The SW-338TR is ideally suited for use where very low power consumption is required. Typical applications of the SW-338TR include transmit/receive switching, switch matrices, and filter banks in systems such as radio and cellular equipment, PCM, GPS, fiber optic modules, and other battery powered radio equipment.
Parametrics
SW-338TR absolute maximum ratings: (1)Input Power: 0.05 GHz:+27 dBm, 0.5 - 2.0 GHz: +34 dBm; (2)Control Voltage: -8.5 V < Vc < + 5 V; (3)Operating Temperature: -40°C to +85°C; (4)Storage Temperature: -65°C to +150°C.
Features
SW-338TR features: (1)Very Low Power Consumption; (2)High Isolation: 30 dB up to 2 GHz; (3)Very High Intercept Point: 46 dBm IP3; (4)Nanosecond Switching Speed; (5)Temperature Range: -40°C to +85°C; (6)Low Cost SOIC-8 Plastic Package; (7)Tape and Reel Packaging Available.

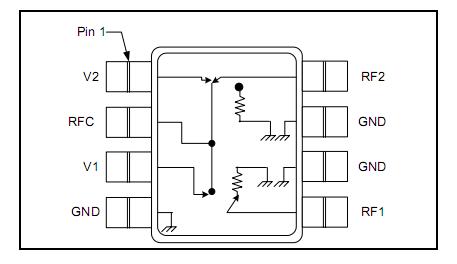

Diagrams
