VNH2SP30TR-E

full bridge motor driver, MSOP-30, + 41 V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.55~6.12 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	6.12 / Piece
11 ~ 100 :	4.99 / Piece
101 ~ 500 :	3.55 / Piece

PartNumber:: VNH2SP30TR-E

Brand:: STMicroelectronics - ST | Pack: HSOP | D/C: 11+

Availability:: Supply Ability: 1000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Datasheet:: VNH2SP30TR-E Datasheet download

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Lucas's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-06

From Other Seller

Part Number:VNH2SP30TR-E
US $3.55 - 6.12
Quantity:

piece

Product Summary

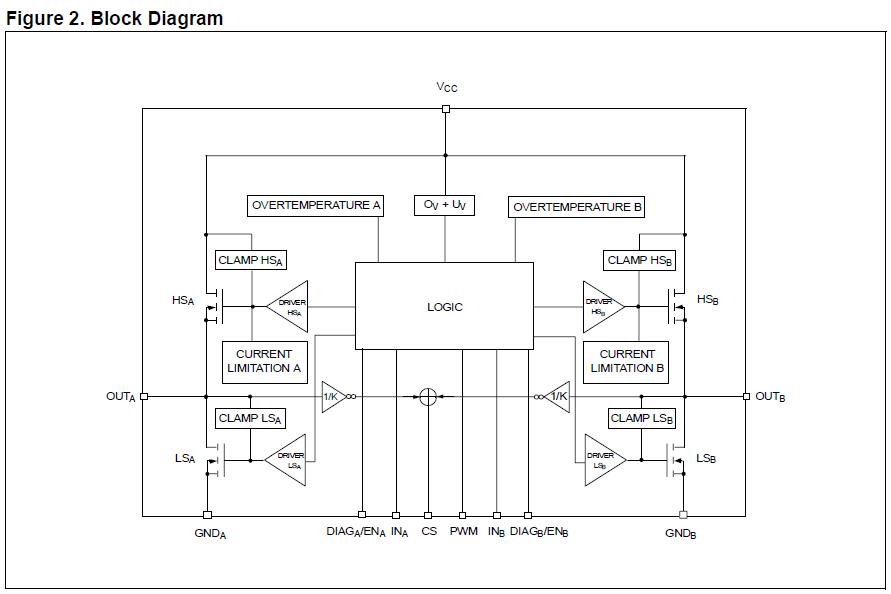

The VNH2SP30TR-E is a full bridge motor driver intended for a wide range of automotive applications. The device incorporates a dual
monolithic High-Side drivers and two Low-Side switches. The High-Side driver switch of VNH2SP30TR-E is designed using STMicroelectronic’s well known and proven proprietary VIPower M0 technology that allows to efficiently integrate on the same die a true Power MOSFET with an intelligent signal/protection circuitry.

Parametrics

VNH2SP30TR-E absolute maximum ratings: (1)Supply Voltage: + 41 V; (2)Maximum Output Current (continuous): 30 A; (3)Reverse Output Current (continuous): -30 A; (4)Input Current (INA and INB pins): +/- 10 mA; (5)Enable Input Current (DIAGA/ENA and DIAGB/ENB pins): +/- 10 mA; (6)PWM Input Current: +/- 10 mA; (7)Current Sense Maximum Voltage: -3/+15 V; (8)Electrostatic Discharge (R=1.5kW, C=100pF): CS pin: 2 kV, logic pins: 4 kV, output pins: OUTA, OUTB, VCC: 5 kV; (9)Junction Operating Temperature: Internally Limited ℃; (10)Case Operating Temperature: -40 to 150 ℃; (11)Storage Temperature: -55 to 150 ℃.

Features

VNH2SP30TR-E features: (1)output current: 30A; (2)5V logic level compatible inputs; (3)undervoltage and overvoltage shut-down; (4)overvoltage clamp; (5)thermal shut down; (6)cross-conduction protection; (7)linear current limiter; (8)very low stand-by power consumption; (9)pwm operation up to 20 KHz; (10)protection against: loss of ground and loss of VCC; (11)current sense output proportional to motor current; (12)in compliance with the 2002/95/EC european directive.
